Raycus 3000W Global-Series CW Fiber Laser Source RFL-C3000S-CE
Raycus 3000W Global-Series CW Fiber Laser Source RFL-C3000S-CE
Customer Service
24/7 expert support for all your technical and product needs.
Secure Payment
We support multiple secure payment methods, including PayPal, credit card, and wire transfer.
Quality Assurance
We provide 100% brand-new original/OEM products with reliable quality control.
Global Delivery
We offer worldwide shipping through trusted carriers, ensuring fast, safe, and reliable delivery.
Product Description
Global Shipping
Return & Refund
Important Notice

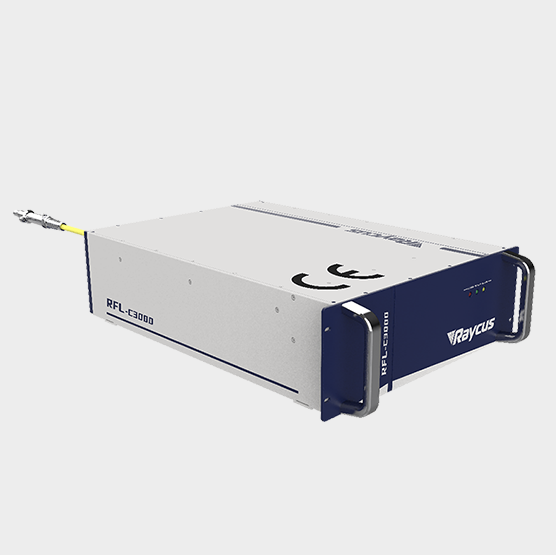

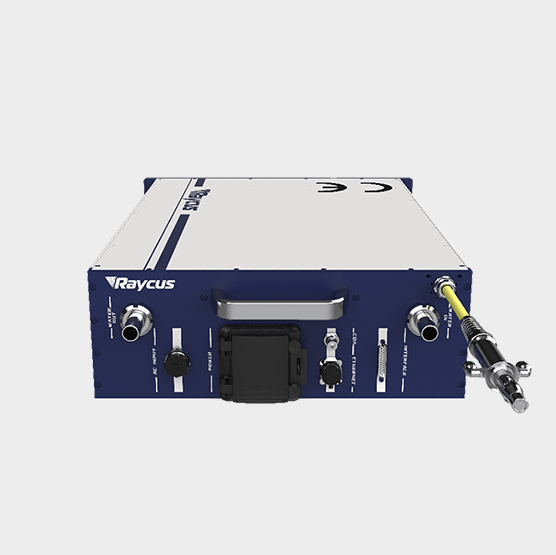

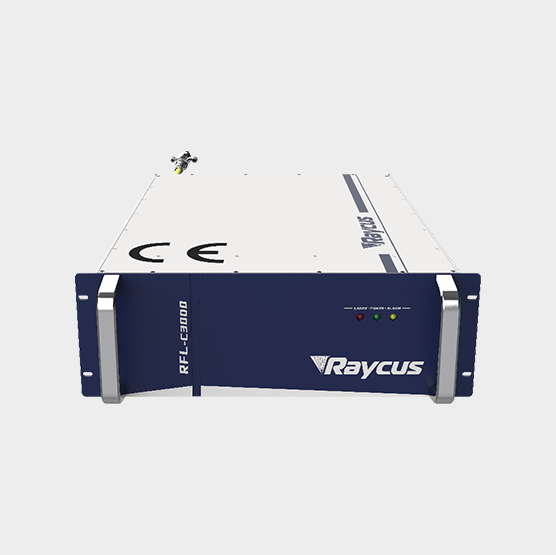

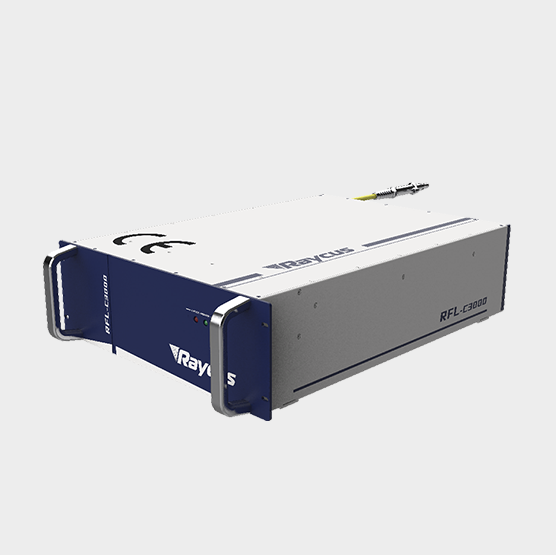

The Raycus RFL-C3000S-CE is a high-performance continuous wave fiber laser designed for stability, efficiency, and versatile industrial applications. It features high electro-optical conversion efficiency and excellent beam quality, delivering high energy density for superior processing performance and productivity. With a wide modulation frequency range, it can adapt to various processing requirements, while its robust design ensures strong reliability, long service life, and truly maintenance-free operation, helping to reduce overall operating costs.
Thanks to its fiber output design, the RFL-C3000S-CE can be easily integrated with industrial robots and automated systems, making it ideal for flexible manufacturing environments and complex three-dimensional processing tasks. It is widely used in applications such as laser welding, precision cutting, cladding, surface treatment, and 3D printing, making it a key solution for advanced manufacturing industries.
Technical Data Sheet
| Model | RFL-C3000S-CE |
| Operation Modes | CW / Modulated |
| Polarization State | Random |
| Nominal Output Power | 3000W |
| Power Adjust Range | 10~100 % |
| Emission Wavelength | 1080±5 nm |
| Output Power Instability | ±1.5% |
| Modulation Frequency | 1-5000 Hz |
| Red Guide Laser Power | 0.5-1 mW |
| Beam Quality | 1.5~2 BPP mm×mrad |
| Output Connector | QBH (customizable) |
| Fiber Core Diameter | 50μm (customizable) |
| Numerical Aperture | 0.2 |
| Delivery Cable Length | 20m |
| Power Supply | 380±10% V AC, 50/60Hz |
| Max. Power Consumption | 10000W |
| Control Mode | RS-232 / AD / Ethernet |
| Dimensions (W×H×D) | 485*172*727 mm |
| Weight | < 55KG |
| Operating Ambient Temperature | 10~40 ℃ |
| Humidity | 30~70 % |
| Cooling Method | Water Cooling |
