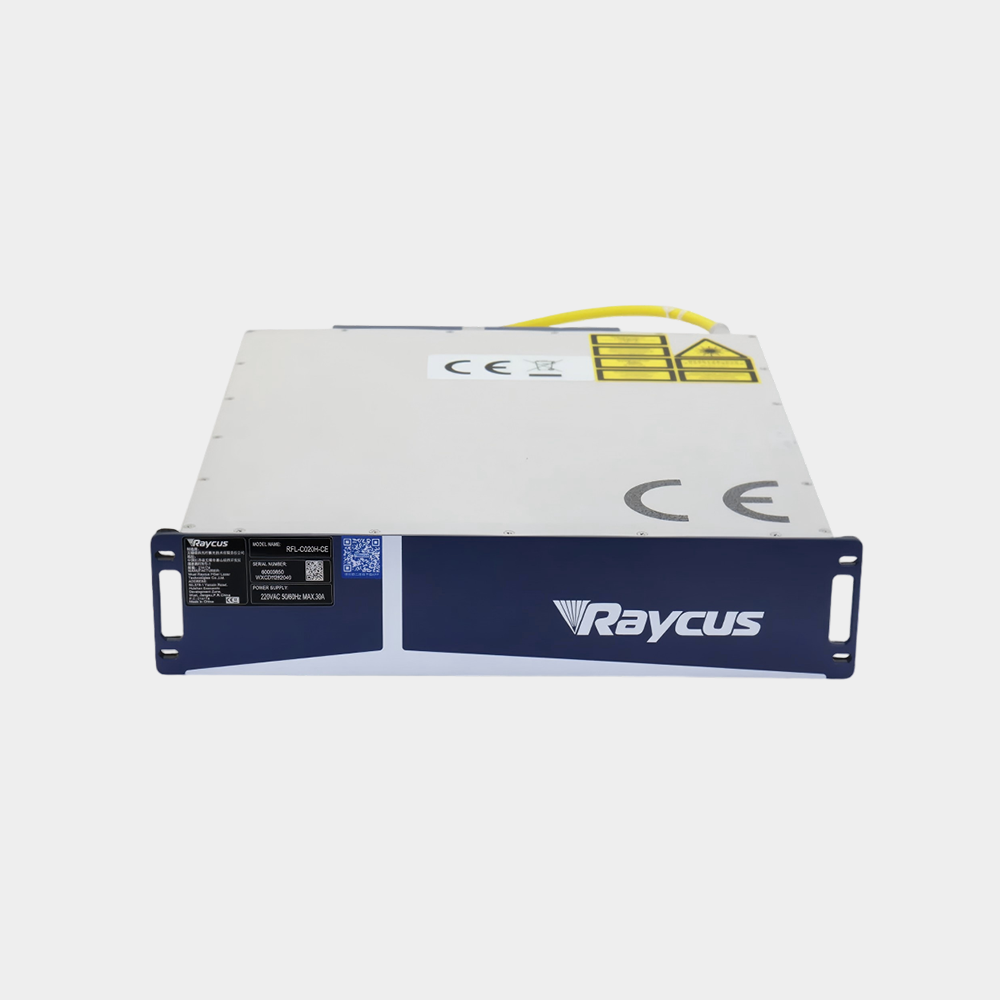

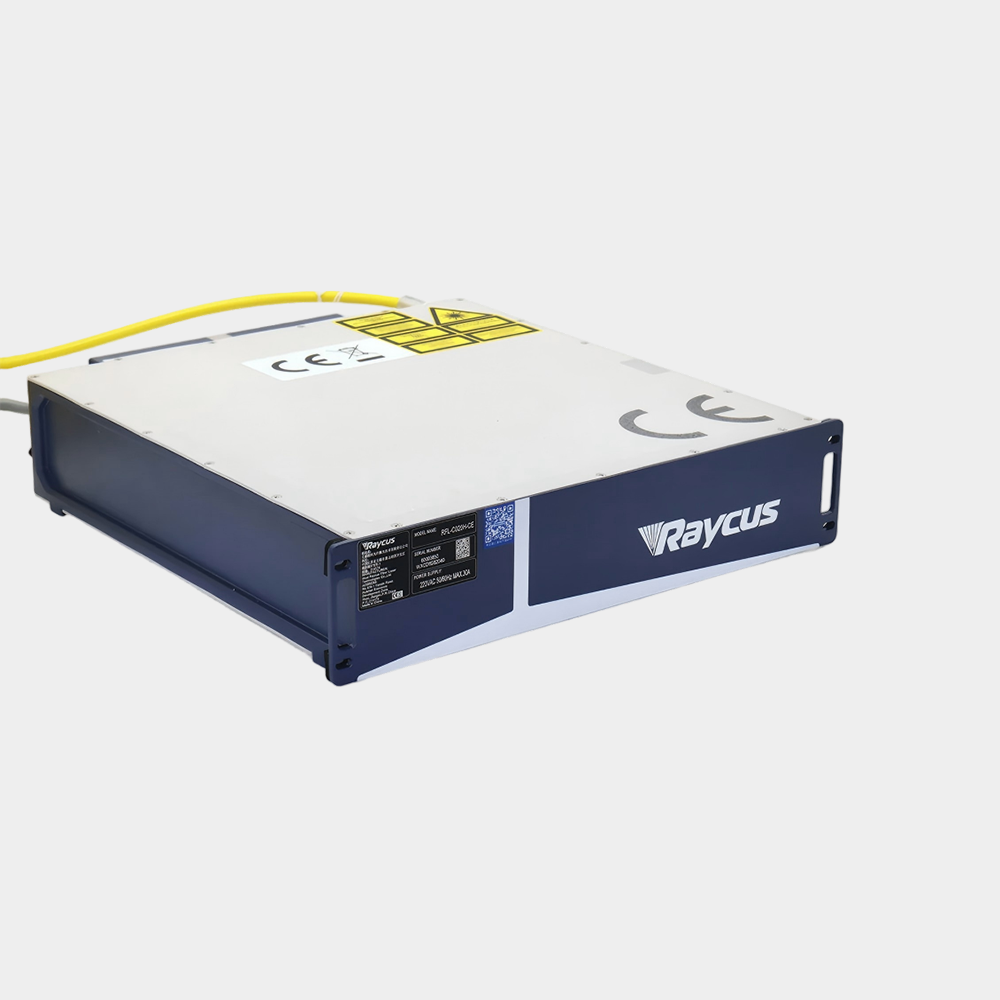

Raycus 1500W Global-Series CW Fiber Laser Source RFL-C020-CE / RFL-C020H-CE
Raycus 1500W Global-Series CW Fiber Laser Source RFL-C020-CE / RFL-C020H-CE
Customer Service
24/7 expert support for all your technical and product needs.
Secure Payment
We support multiple secure payment methods, including PayPal, credit card, and wire transfer.
Quality Assurance
We provide 100% brand-new original/OEM products with reliable quality control.
Global Delivery
We offer worldwide shipping through trusted carriers, ensuring fast, safe, and reliable delivery.
Product Description
Global Shipping
Return & Refund
Important Notice
The Raycus RFL-C020H-CE / RFL-C020-CE 1500w fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user’s apparatus. It is great for laser cutting or handheld laser welding.
Technical Data Sheet
| Model | RFL-C020-CE | RFL-C020H-CE |
| Operation Modes | CW / Modulated | CW / Modulated |
| Nominal Output Power | 1500±50 | 1500±50 |
| Power Adjust Range | 2-100 % | 2-100 % |
| Emission Wavelength | 1080±5 nm | 1080±5 nm |
| Output Power Instability | < ±1% | < ±1% |
| Modulation Frequency | 1-5000 Hz | 1-5000 Hz |
| Duty Cycle Range | 1-100% | 1-100% |
| Red Guide Laser Power | 0.5-1 mW | 0.5-1 mW |
| Fiber Core Diameter | 50um（14 / 25 / 100 / 200 are optional） |
25um |
| Numerical Aperture | 0.16 | 0.11 |
| Beam Quality | 2-6 M² (50um) | ≤1.8 M² (25um) |
| Delivery Cable Length | 20m | 10m |
| Operating Voltage | 220 VAC | 220 VAC |
| Control Mode | RS-232 / AD / Ethernet / Bluetooth | Control line / Bluetooth |
| Max. Power Consumption | ＜6.5kW | ＜6.5kW |
| Photoelectric Conversion Efficiency | ＞33% | ＞33% |
| Dimensions | 340×405×80 mm | 340×390×80 mm |
