SUP23T 4 in 1 Fiber Laser Handheld Welding Head
SUP23T 4 in 1 Fiber Laser Handheld Welding Head
Customer Service
24/7 expert support for all your technical and product needs.
Secure Payment
We support multiple secure payment methods, including PayPal, credit card, and wire transfer.
Quality Assurance
We provide 100% brand-new original/OEM products with reliable quality control.
Global Delivery
We offer worldwide shipping through trusted carriers, ensuring fast, safe, and reliable delivery.
Product Description
Global Shipping
Return & Refund
Important Notice

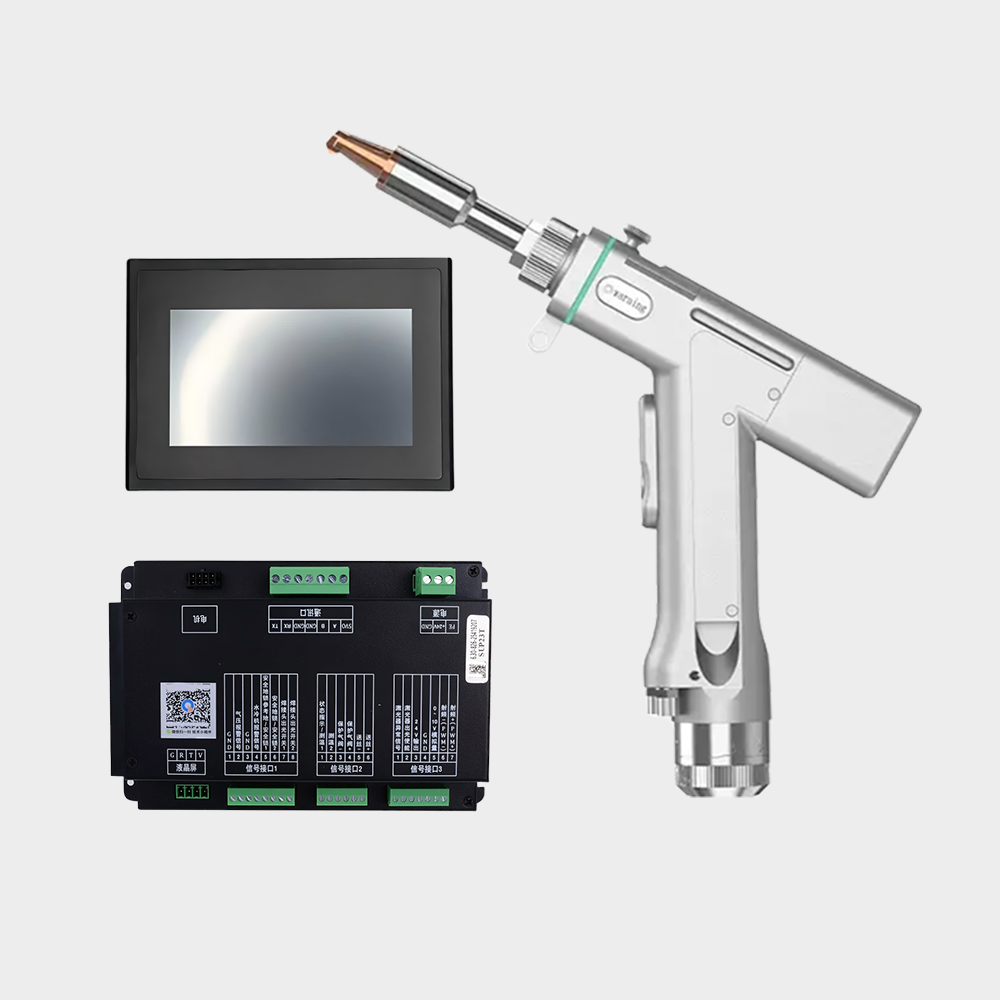

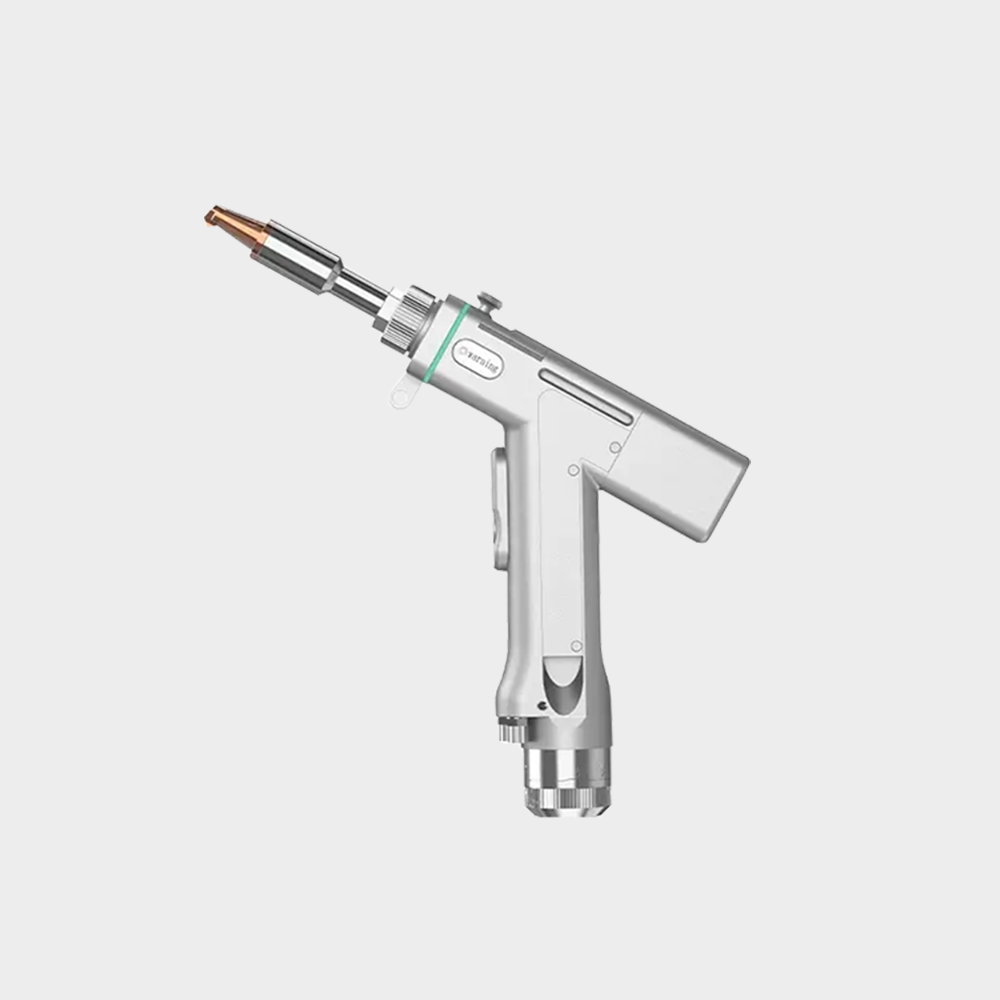

The SUP23T Four-in-One Handheld Welding Head is designed for laser welding, non-contact cleaning, seam cleaning, and cutting applications. It integrates a handheld laser head and a control system with enhanced safety protection features.
Based on the SUP20T platform, the SUP23T is more compact, lighter, and more reliable, offering improved insulation, structural stability, and easier maintenance. It is compatible with a variety of fiber laser sources and features an optimized cooling system, ensuring stable operation at power levels up to 3000W.
In cleaning mode, it supports a maximum cleaning width of 120 mm, delivering efficient and consistent surface treatment performance.
Technical Data
| Model | SUP23T |
| Input Voltage | 220V ±10% AC 50/60Hz |
| Installation Environment | Flat, no vibration and impact |
| Working Environment Temperature | 10~40 ℃ |
| Working Environment Humidity | ＜ 70% |
| Cooling-down Method | Water Cooling |
| Applicable Wavelength | 1064nm (±10nm ) |
| Applicable Power | ≤3000W |
| Alignment | D16/F60 |
| Focus | D20/F150 |
| Maximum Air Pressure | 15Bar |
| Focus Vertical Adjustment Range | ±10mm |
| Scan Width – Weld | 0~8mm |
| Net Weight | 0.75kg |
